**NEW** Tuson TPMS HEAVY DUTY TRUCK RECEIVING BOX EXTENSION ANTENNA (RV TPMS-HDT-ANTENNA)
**NEW** Tuson TPMS HEAVY DUTY TRUCK RECEIVING BOX EXTENSION ANTENNA (RV TPMS-HDT-ANTENNA)
Couldn't load pickup availability
Tuson RV Brakes, LLC
Tuson Heavy Duty Truck Extension Antenna
(TPMS-HDT-ANTENNA)
3 reviews
Regular price $85.00
Top of Form

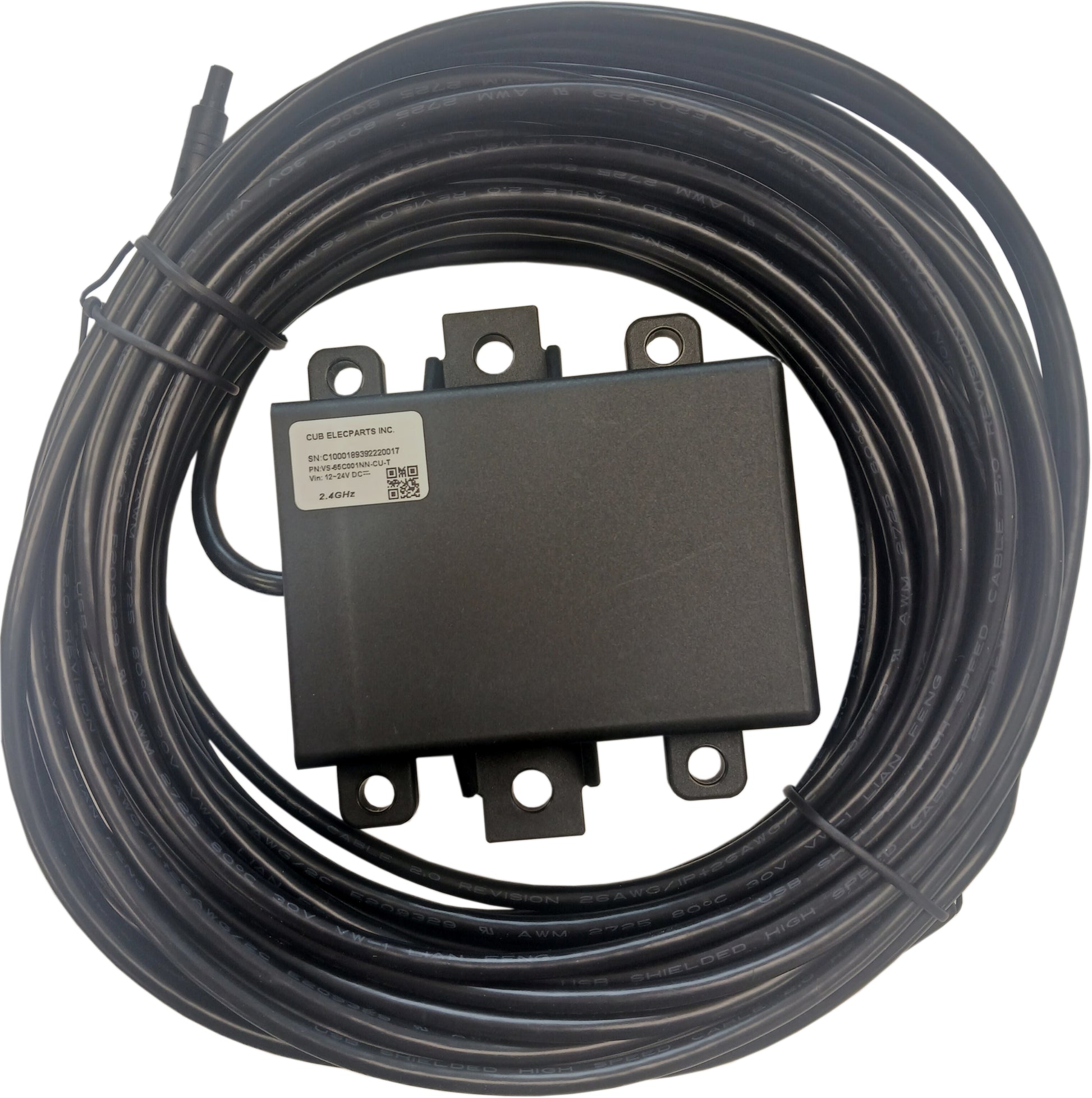

The Receiving Box - Extension Antenna is mounted on the back of the truck in the middle area of the rear bumper. The cable is routed from the rear bumper to the Receiver/Monitor where it plugs into the monitors harness. The extension antenna receives the RF signals from the sensors and passes them to the monitor. The extension antenna receives its power from the cable connected to the monitor’s harness.
Receiving Box – Extension Antenna Specifications
|
Item |
Specification |
|
Operating Voltage |
5V DC |
|
Operating Current |
30mA |
|
Operating Frequency |
2.4 GHz |
|
Operating Temperature |
-22°F~185°F (-30°C~85°C) |
|
Storage Temperature |
-40°F~185°F (-40°C~85°C) |
|
Cable Length |
90 inch (2300 mm) |
|
Size |
3.5”x3.8”x0.9” (88x96x23mm) |
|
Weight |
13.4 oz (380g) |
|
|
|
