**NEW** Tuson TPMS HEAVY DUTY TRUCK MONITOR (RV TPMS-HDT-MONITOR)
**NEW** Tuson TPMS HEAVY DUTY TRUCK MONITOR (RV TPMS-HDT-MONITOR)
Couldn't load pickup availability
Tuson RV Brakes, LLC
Tuson Heavy Duty Truck TFT Touch-Screen Receiver / Monitor
(TPMS-HDT-MONITOR)
3 reviews
Regular price$330.00Top of Form
Bottom of Form

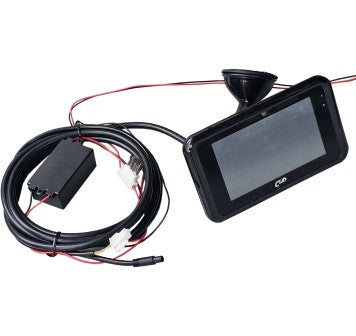

This receiver (monitor) is a 5-inch TFT/LCD touch screen display that allows the driver to monitor all tire pressures and temperatures. The system can be configured to monitor from 2 to 22 tires. The monitor is powered by the truck and does have an internal rechargeable battery that (when fully charged) allows the monitor to be taken back by the wheels to diagnose and pair the individual sensors. The monitor is also used to set the truck/trailer configurations and parameter settings for pressure and temperature.
Receiver - Monitor Specifications
|
Item |
Specification |
|
Operating Voltage |
12~24V DC |
|
Operating Current |
800mA |
|
Operating Frequency |
433 MHz, 2.4 GHz |
|
Operating Temperature |
14°F~140°F (-10°C~60°C) |
|
Storage Temperature |
-4°F~140°F (-20°C~60°C) |
|
Monitored Pressure Range |
0~217±1.5 psi (0~1500±10 kPa) |
|
Monitored Temperature Range |
-40°F~257°F±5.4°F (-40°C~125°C±3°C) |
|
Size |
6.2”x3.7”x1” (158x94x21 mm) |
|
Weight |
8.8 Oz (250g) |
