**NEW** TPMS HEAVY DUTY TRUCK BALL SENSOR (RV TPMS-HDT-BALL-SENS)
**NEW** TPMS HEAVY DUTY TRUCK BALL SENSOR (RV TPMS-HDT-BALL-SENS)
Couldn't load pickup availability
Tuson RV Brakes, LLC

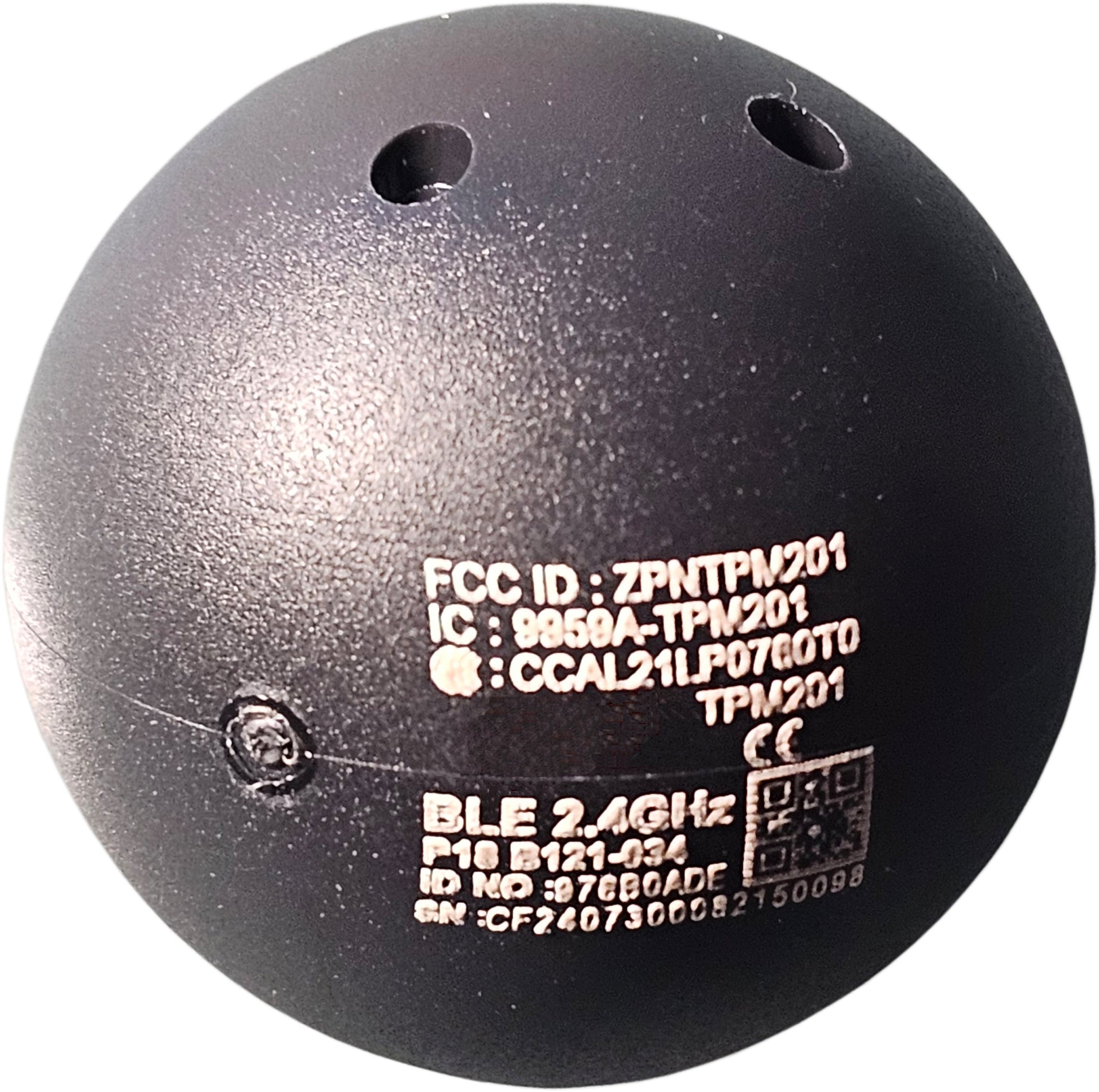

Internal TPMS Ball Sensor (TPMS-HDT-BALL-SENS)
3 reviews
Regular price $60.00
Top of Form
Bottom of Form
The Tuson TPMS HDT Ball Sensors are automotive-grade internal sensors designed to monitor tire pressure and temperature consistently and wirelessly transmit data to the receiver. Each sensor has a unique ID# to identify the sensor to the receiver.
These are internal sensors that are freely rotating inside the tire to prevent damage and/or theft. Internal sensors provide more accurate pressure and temperature readings than external sensors.
The sensors are motion-activated and will go into sleep mode when the wheels stop moving to preserve sensor battery life. Sensors may take a few minutes to wake-up. Once the wheel speed is over 12 mph/20 kph, then the sensor will wake-up and will continue transmitting messages to the receiver every minute while moving.
As a general reference, the sensor battery life is about 5 years when driven 4 hours per day. Sold individually.
Technical Specs
|
Operating Voltage |
3V DC |
|
Operating Frequency |
2.4 GHz |
|
Operating Temperature |
-40°F~257°F (-40°C~125°C) |
|
Storage Temperature |
-40°F~257°F (-40°C~125°C) |
|
Tire Pressure Monitoring Range |
0~217 ±1.5 psi (0~1500 ±10 kPa) |
|
Tire Temperature Monitoring Range |
-40°F~257°F±5.4°F (-40°C~125°C±3℃) |
|
Weight |
39 g (1.4 Oz) |
|
Includes |
Sensor, drop in,1500 Kpa (without valve) |
